Boxes are the cement of the Evenblox system. They hold the inserts for your electronics and can be mounted on the 20×20 extrusion or baseplate. You can close the boxes with covers and make them larger with extenders on top of them.

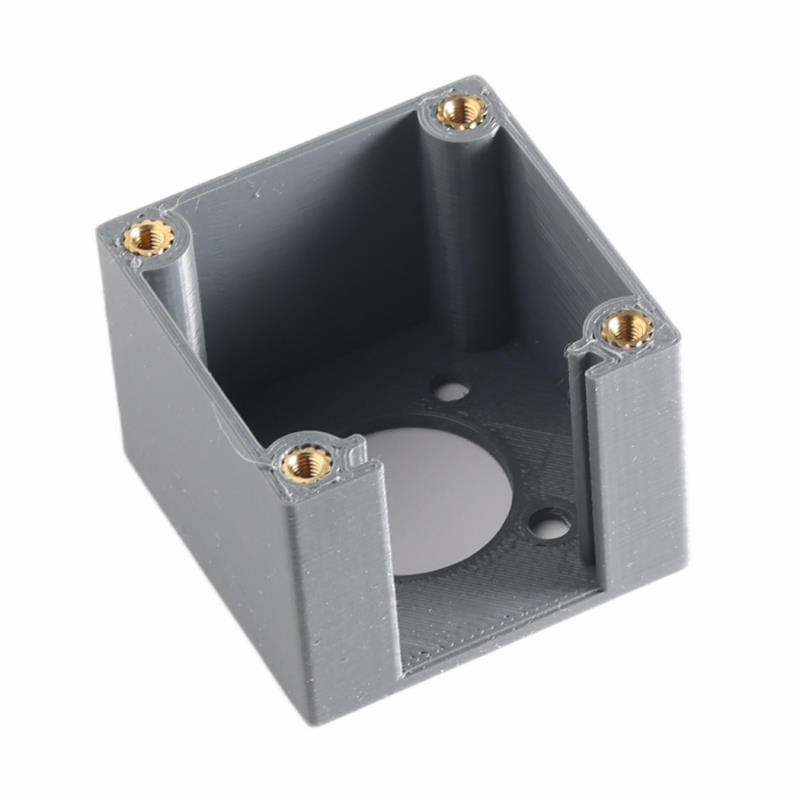

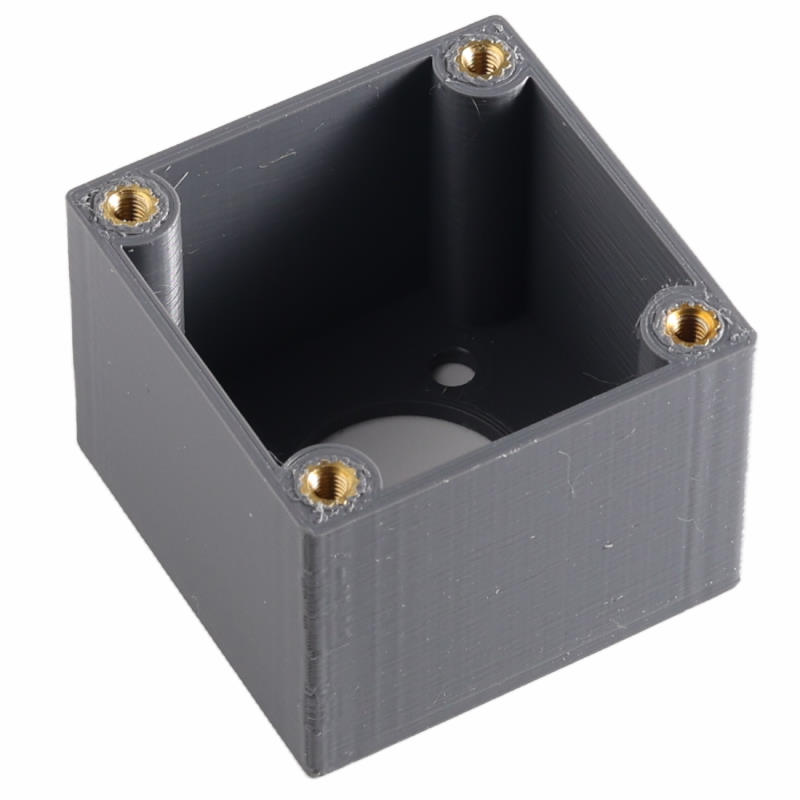

Box 1×1
Boxes with the outer dimensions of 39,8 mm x 39,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 1×1.stl

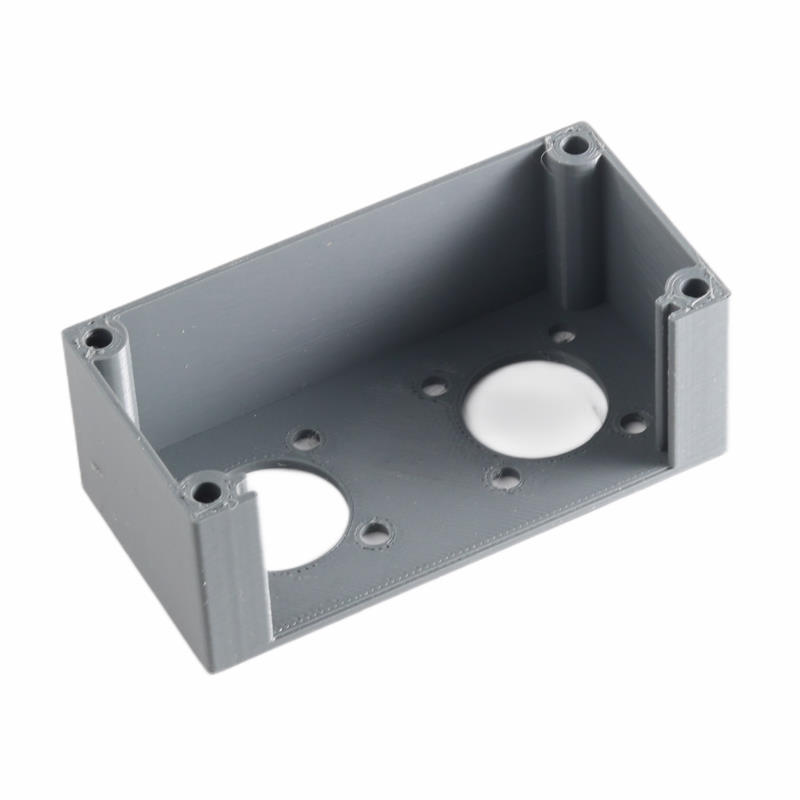

Box 2×1
Boxes with outer dimensions of 79,8 mm x 39,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 2×1.stl
Box 2×2
Boxes with outer dimensions of 79,8 mm x 79,8 mm and, are 30 or 20 mm high. This box fits an Arduino Uno.
Download the STL file: Box 2×2.stl
Box 3×1
Boxes with outer dimensions of 119,8 mm x 39,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 3×1.stl
Box 3×2
Boxes with outer dimensions of 119,8 mm x 79,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 3×2.stl
Box 3×3
Boxes with outer dimensions of 79,8 mm x 79,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 3×3.stl
Box 4×1
Boxes with outer dimensions of 159,8 mm x 39,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 4×1.stl
Box 4×2
Boxes with outer dimensions of 159,8 mm x 79,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 4×2.stl

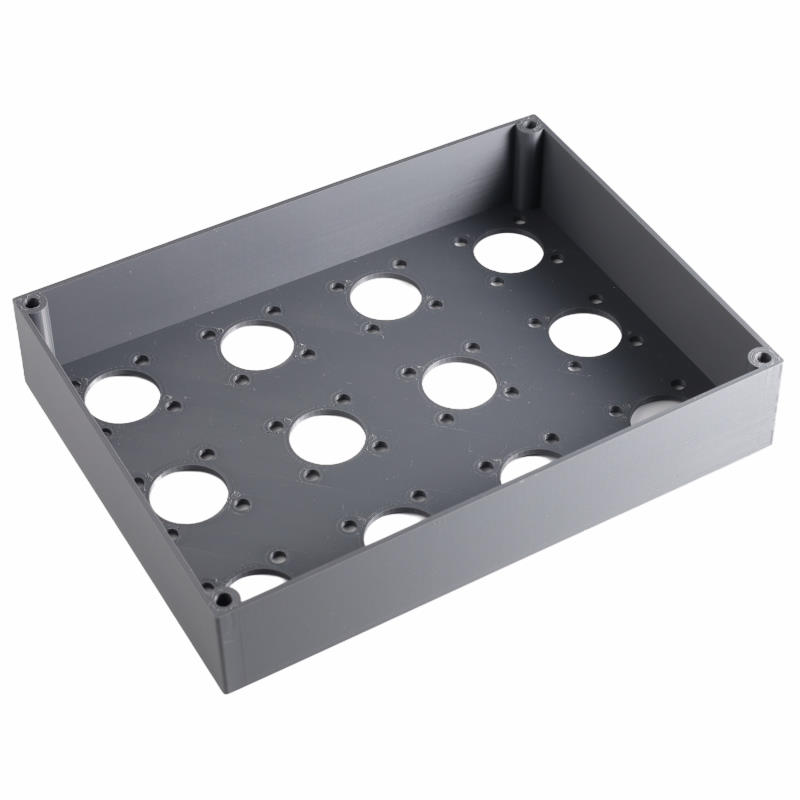

Box 4×3
Boxes with outer dimensions of 159,8 mm x 119,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 4×3.stl
Box 4×4
Boxes with outer dimensions of 159,8 mm x 159,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 4×4.stl
Box 5×1
Boxes with outer dimensions of 199,8 mm x 39,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 5×1.stl
Box 5×2
Boxes with outer dimensions of 199,8 mm x 79,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 5×2.stl
Box 5×3
Boxes with outer dimensions of 199,8 mm x 119,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 5×3.stl
Box 5×4
Boxes with outer dimensions of 199,8 mm x 159,8 mm and, are 30 or 20 mm high.
Download the STL file: Box 5×4.stl
